C-Clamp Prop Puller 1 1/4" - 1 3/8" Prop Shafts 330S for 1 1/4″ Shaft Compatible with All 2014 and Newer G Series 16"-18" Diameter Propellers
4.5 (139 items)
Limited Time SaleUS$42.20 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212828979 | Release Date | 2026/04/12 | List Price | US$28.13 | Model Number | 212828979 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
PULLER INSTRUCTIONS (For the traditional style puller – Part #s 228S and 330S) 1.Remove the cotter pin. Loosen the prop nut two turns (do not remove the nut). You want approximately 2 full threads of space between the nut and the prop hub. 2.Back out the prop puller bolt to allow for installation of the puller. The puller “fingers” slide between the forward end of the prop hub and aft of the strut (barrel portion). The puller bolt cap is positioned over the end of the shaft aft of the prop. 3.Advance the puller bolt clockwise (tighten) with a wrench. Do not over-tighten. The purpose of tightening is not to break the prop free, but to apply ample pressure on the end of the shaft and the forward end of the prop hub to transfer the shock, during impact, with a hammer. DO NOT USE AN IMPACT WRENCH. 4.Once the puller is firmly in place and the puller bolt is tightened down, hit the puller on the end opposite the bolt, with a hammer (it is also possible to hit the head of the puller bolt, hitting it on the finger end is preferred, to avoid causing damage to the bolt, cap, or bolt threads). It may be necessary to repeat steps 3 & 4. The hammer impact and harmonics should be enough to break the prop free from the shaft taper. Once free, remove the nut, prop, and key (if app). 5.WHEN REINSTALLING THE PROPELLER, A VERY LIGHT FILM OF GREASE OR ANTI-SEIZE ON THE SHAFT / BORE TAPER IS ACCEPTABLE, BUT DO NOT OVER-APPLY. ALSO, DO NOT OVER-TIGHTEN THE PROP NUT. APPROXIMATELY 35 FOOT-POUNDS IS SUFFICIENT.

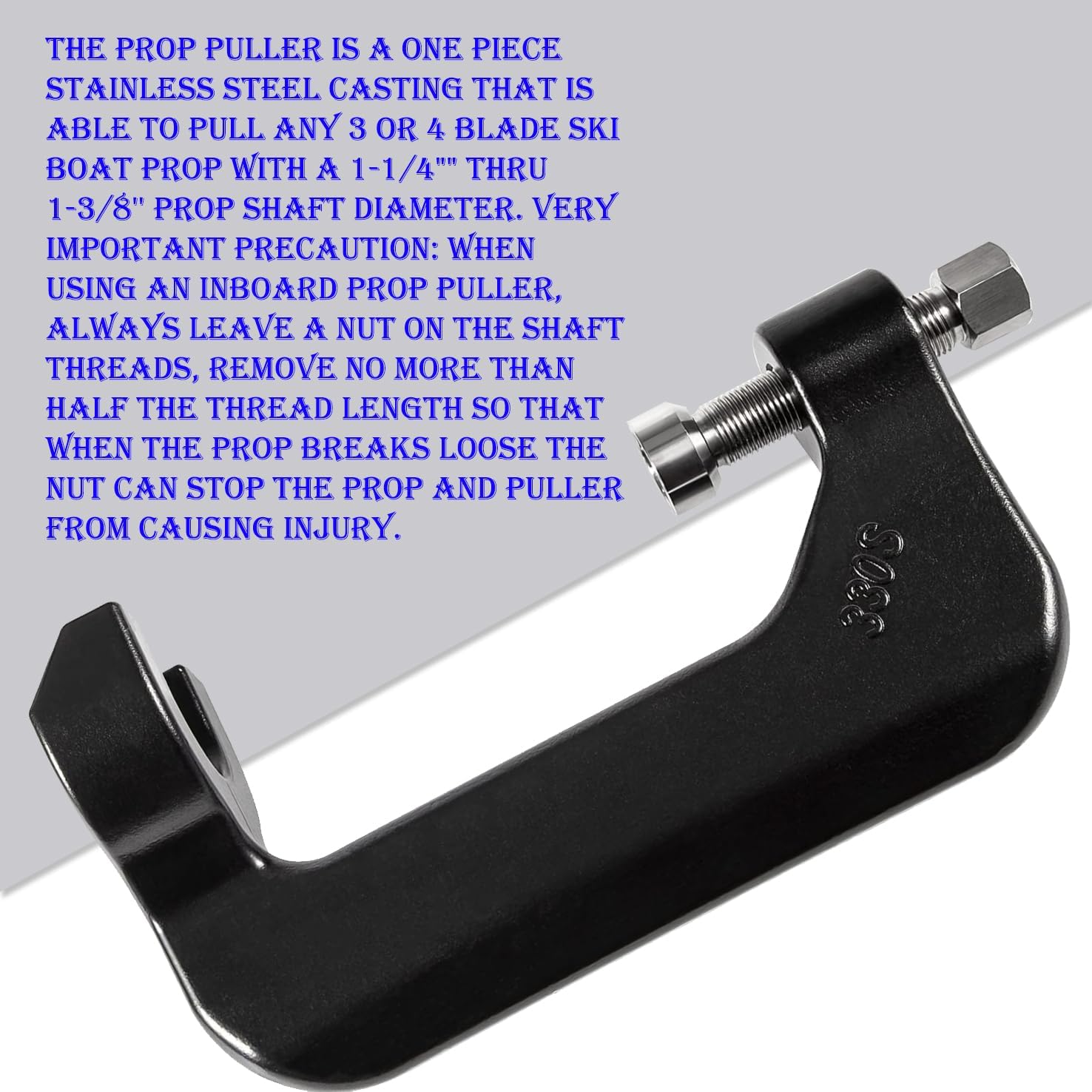

- 330S Propeller Puller is a precision tool essential to removing 2, 3 and 4 blade ski wake boat propeller
- Able to pull 4 blade ski boat props with 1-1/4" - 1-3/8" prop shaft diameter ( Not for 1″ to 1-1/8″ shafts)
- VERY IMPORTANT PRECAUTION: When using an inboard prop puller, always leave a nut on the shaft threads, remove no more than half the thread length so that when the prop breaks loose the nut can stop the prop and puller from causing injury
- High-strength forged steel construction with higher strength and toughness, durable and sturdy. Coated with a slick black finish, sturdy, impact resistance and anti-corrosion for providing much longer service time
| Color | black |
|---|---|
| Brand Name | Generic |
| Model Name | C-Clamp Prop Puller |
| Manufacturer | TZDZ |
| Package Weight | 2.16 Kilograms |
| Number of Items | 1 |
| Included Components | 330S Propeller Puller |
| Item Package Dimensions L x W x H | 9.65 x 5.83 x 3.27 inches |
