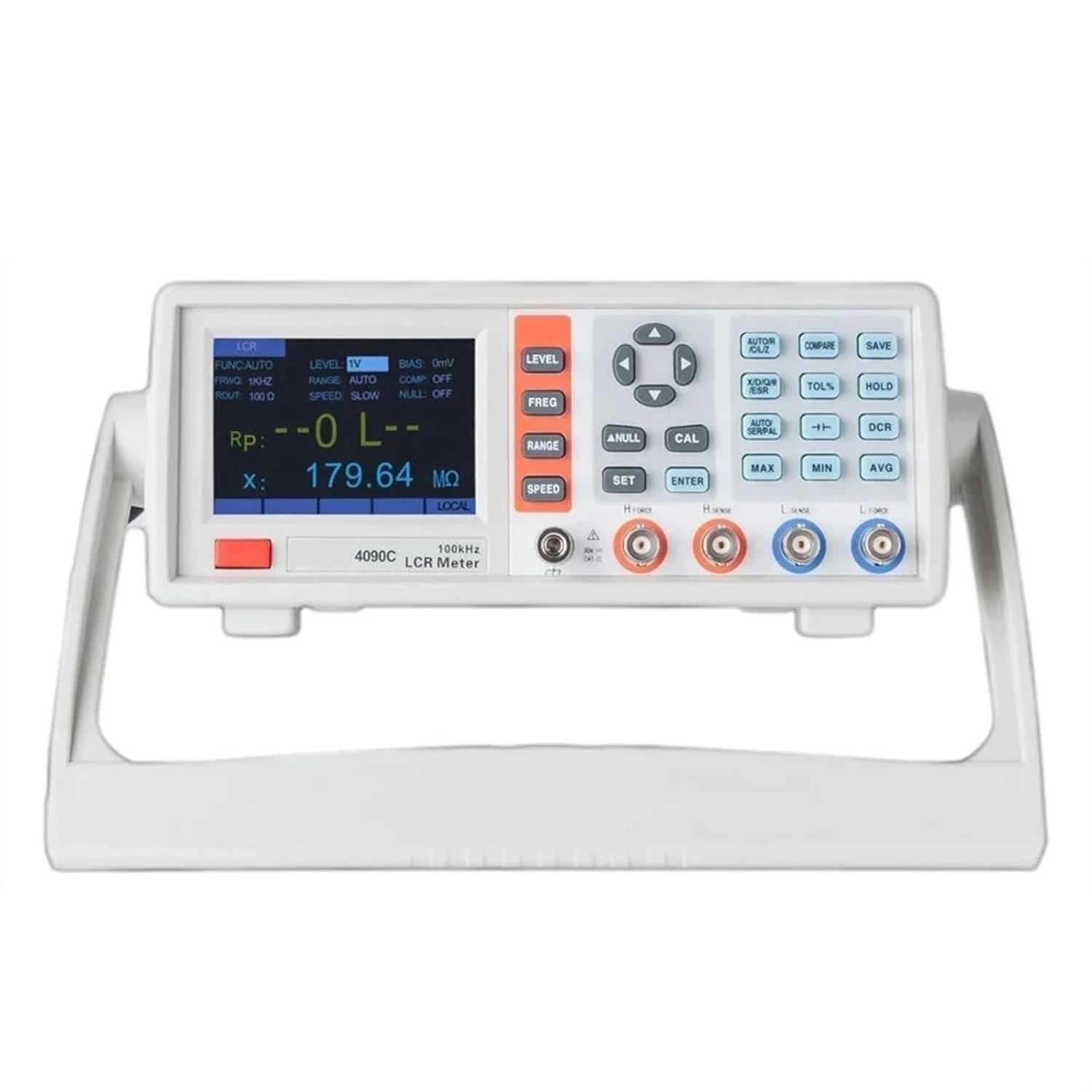

LCR Meter, Desktop LCR Digital Bridge Capacitance Resistance Impedance Capacitance Inductance Measure Instrument Multimetro LCR(4091C)

Features:Measurement frequency up to 100kHzTest level 100 ~ 2000mVSupport the measurement of DCresistance and electrolytic capacitorInternal bias voltage output (1mV-1500mV)Automatic identification ofcomponent measurement3.5-inch TFT display, 5 and a half bits displayUSB, RS232 communication interface,Handle sortingData recording function (maximum andminimum values, average value)Support SCPI communication protocolProvide system, which can configurelanguage, buzzer, screen brightness,etc accordingto the needs of users.Basic accuracy 0.2%Manual and automatic rangeBe equipped with open circuit andshort circuit correctionComparator has sorting and alarm functionProvide a variety of test portsModelVC4090AVC4090BVC4090CVC4091AVC4091CDigitsMain parameter: 5 digits; secondary parameter: 5 digitsMeasurement ParameterMain parameter: L/C/R/Z; secondary parameter: X/D/Q//ESRMeasurement Range(L)0.001H - 9999HMeasurement Range(C)0.001pF - 9999FMeasurement Range(R)0.0001 - 99.99MBasic Accuracy0.10%Test Frequency (Hz)100~10kHz100~20kHz100~100kHz10~10kHz10~100kHz10 point12point16 pointContinuously adjustable(1Hz)Continuously adjustable(1Hz)Measurement2 times/second (slow), 5 times/second(medium speed), 10 times/second (fast)Internal Bias0-1500mV adjustable, 1mV steppingTest Level100mV, 300mV, 600mV, 1000mV, 1500mV, 2000mV0.1V~2VContinuously adjustable (1mV)Correction FunctionOpen circuit correction, short circuit correctionScreening functionThe screening limit can be set from -100% to +100%with fixed points of 10%, 25%, 50%Selection of comparatorFive gear sorting, third gear qualified, one gear failed, one ancillary gearCommunication InterfaceStandard configuration: USB, RS232 (or 485),Handle interface;Optional: GPIB, USB HostOthersSupport DCR, electrolytic capacitor measurement mode,adjustable backlight brightness, optional in English and Chinese<;10W4090 Series Desktop Digital Bridge Capacitance Resistance Inductance Measure LCR MeterStandard accessories1: LCR meter*1pc2: Kelvin Clip*1set (35A)3: Power cord *1pc4: User manul *1pcOptional accessories (Please contact customer service for price)RS232 cable or USB cablehandle cableSMD component test fixture(links to purchase)

• 1. High Precision Measurement: The Digital Bridge Capacitance Resistance Impedance Capacitance Inductance Measure Instrument boasts a measurement frequency of up to 100kHz, allowing for accurate and precise readings. With a basic accuracy of 0.2%, you can trust the results it provides.
• 2. Versatile Functionality: This instrument supports the measurement of DC resistance and electrolytic capacitors, making it suitable for a wide range of applications. It also features an internal bias voltage output ranging from 1mV to 1500mV, providing flexibility in testing various components.
• 3. User-Friendly Interface: Equipped with a 3.5-inch TFT display and 5 and a half bits display, this device offers clear and easy-to-read measurements. The USB and RS232 communication interfaces enable seamless data transfer, while the handle sorting feature allows for convenient usage.
• 4. Comprehensive Data Recording: With the ability to record maximum and minimum values, as well as average values, this instrument ensures comprehensive data analysis. The provided SCPI communication protocol further enhances data management for efficient testing processes.
• 5. Wide Compatibility: The Digital Bridge Capacitance Resistance Impedance Capacitance Inductance Measure Instrument is compatible with various test ports and comes with different models to meet specific requirements. Its open circuit and short circuit correction functions ensure accurate and reliable measurements, while the built-in comparator feature allows for efficient sorting and alarming.
